dry film thickness (DFT) and ULTRASONIC TESTING (UT)


The Apellix NDT Autonomous drones perform safe, reliable, cost-effective dry film thickness (DFT) and ultrasonic thickness (UT) measurements at height.

To learn more, read the Apellix Blog post
How Drones are Changing Corrosion Inspections in 2021 and Beyond

Interested in our services? Visit the Apellix NDT Field Services Group website

DFT Specifications

●  Performs 100 or more DFT readings per hour, at multiple measurement sites, with optional all-day flight via ground power (no battery changes)

●  User interface displays real-time measurement values

●  Data records are exported to user as a text-based .csv file

●  Performs measurements pursuant to SSPC-PA 2, ASTM D 7091, IMO PSPC and others

●  Reaches vertical locations up to 100 m (300 ft) above ground level

●  Operable in winds up to 12 knots (13 mph)

●  Dramatically reduces requirements for scaffolding, lifts, and fall protection equipment

Uses a DeFelsko Positector 6000 electronic measurement gauge for ferrous and nonferrous substrates



UT SPECIFICATIONS

●  Performs measurements up to 100 m (330 ft) above ground level

●  Over 100 separate site measures per hour, with all-day flight via ground power (no battery changes)

●  Operable in winds up to 12 knots (14 mph)

●  Configurable for wide temperature ranges and wall thicknesses

●  Couplant applied automatically between readings

●  Output includes real-time test results, customizable downloads and proprietary 3D map of test results/structure

●  Requires only basic piloting skills (current US regulations require an FAA part 107 pilot license)

Uses a DeFelsko UTG M gauge with single element 5 MHz contact transducer


What is autonomous flight?

The pilot simply positions the aircraft near the inspection target and selects the START button on the user interface. The onboard computer then takes over, performing all flight control and testing before returning a safe distance from the wall or structure to await further instructions.

About Apellix Non-Destructive Testing (NDT) Robotic Devices

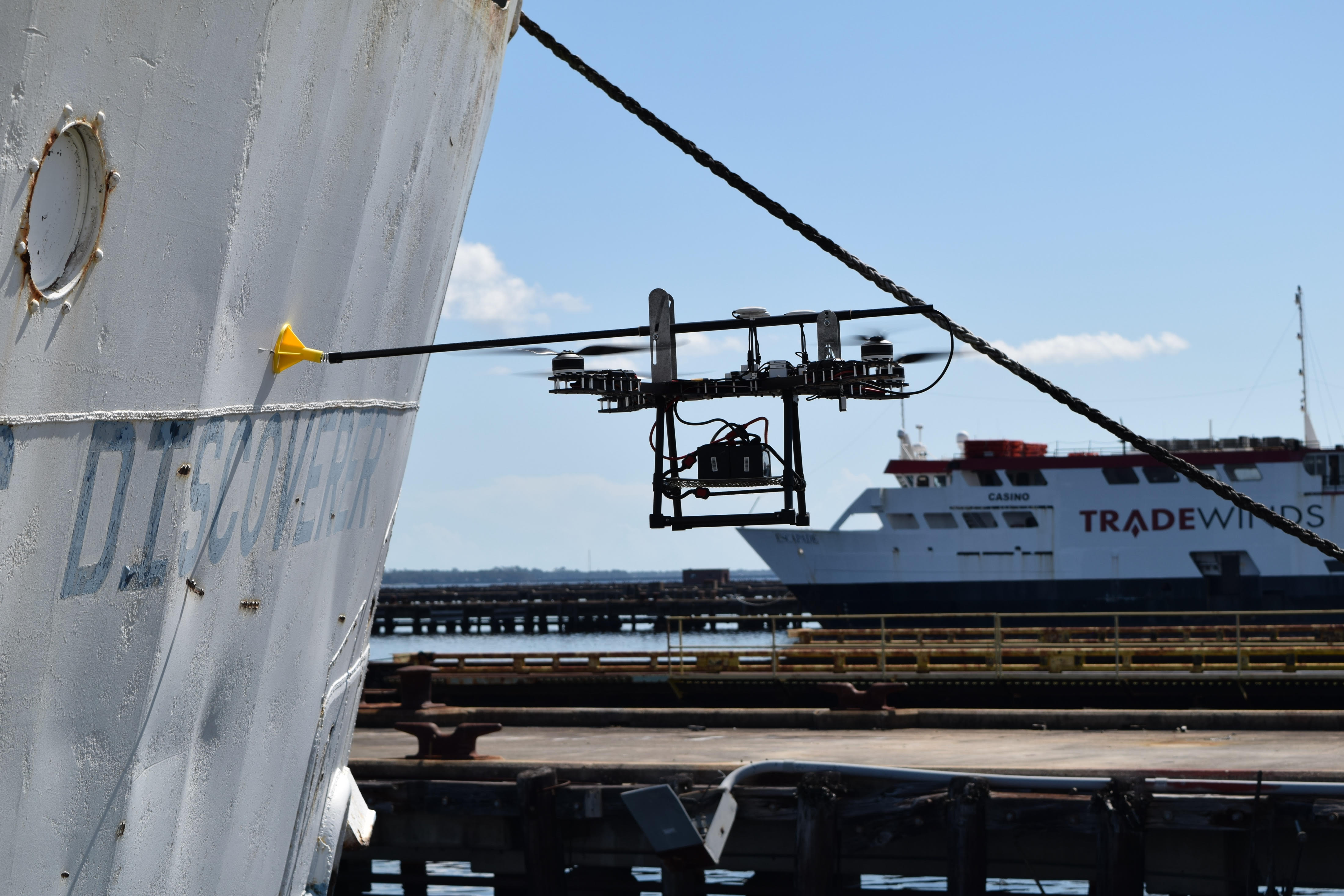

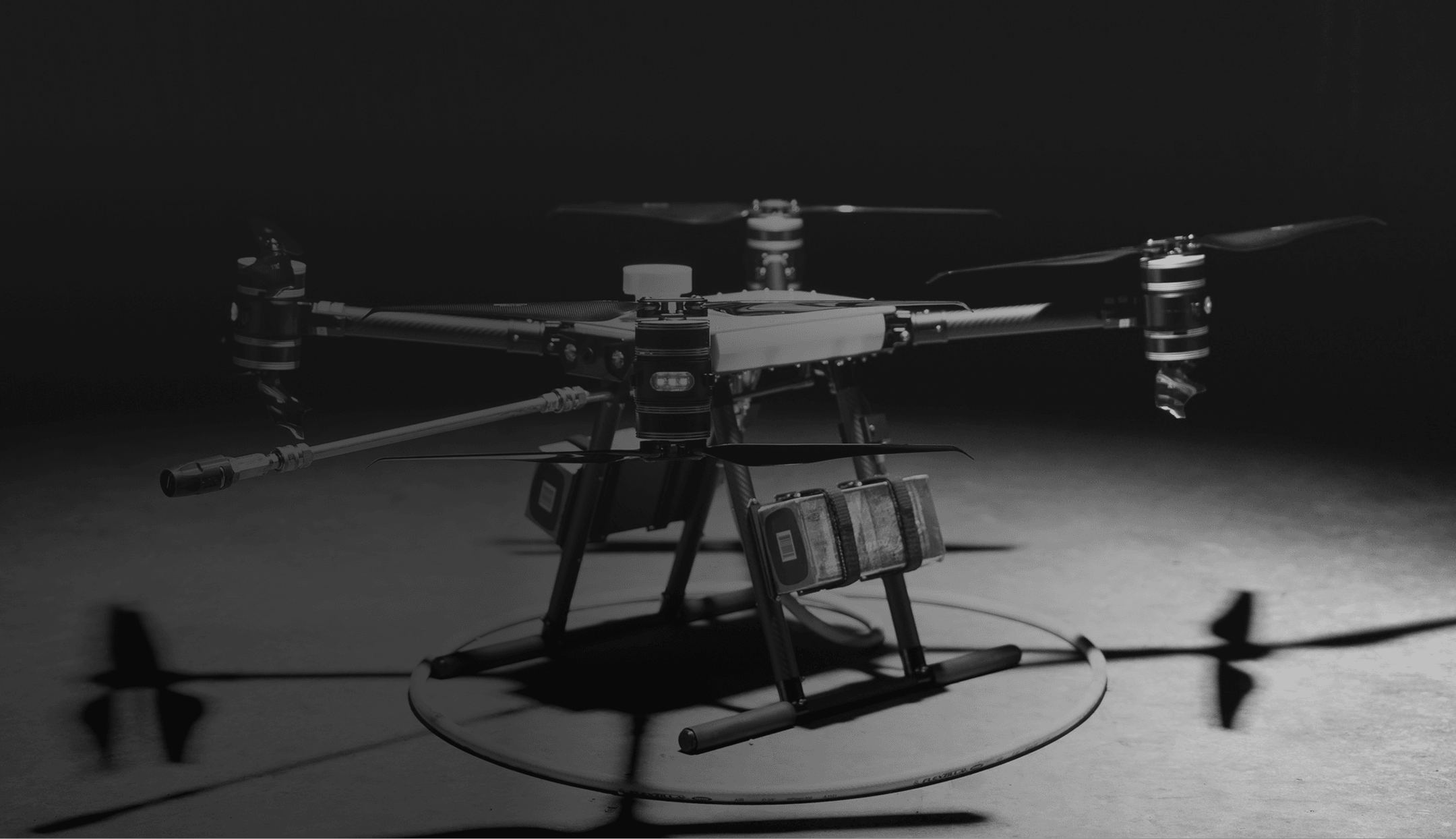

Our patented aerial robotic system is a hardened custom drone equipped with an array of sensor systems, a full onboard computer, and custom software to allow automatic flight to contact wall structures for measurements. The aircraft includes an articulating robotic arm with an end effector, which is the component that physically contacts the material being tested. The end effector contains the inspection measurement equipment, such as a dry film thickness or ultrasonic thickness probe. It is important to note that inspection devices measuring readings are the same technology currently used in the industry; the aerial robotic system simply places the probe against the wall surface instead of a person.

Export Restrictions

The information contained on this page pertains to products controlled for export by the Export Administration Regulations (EAR) Division of the US Department of Commerce.
