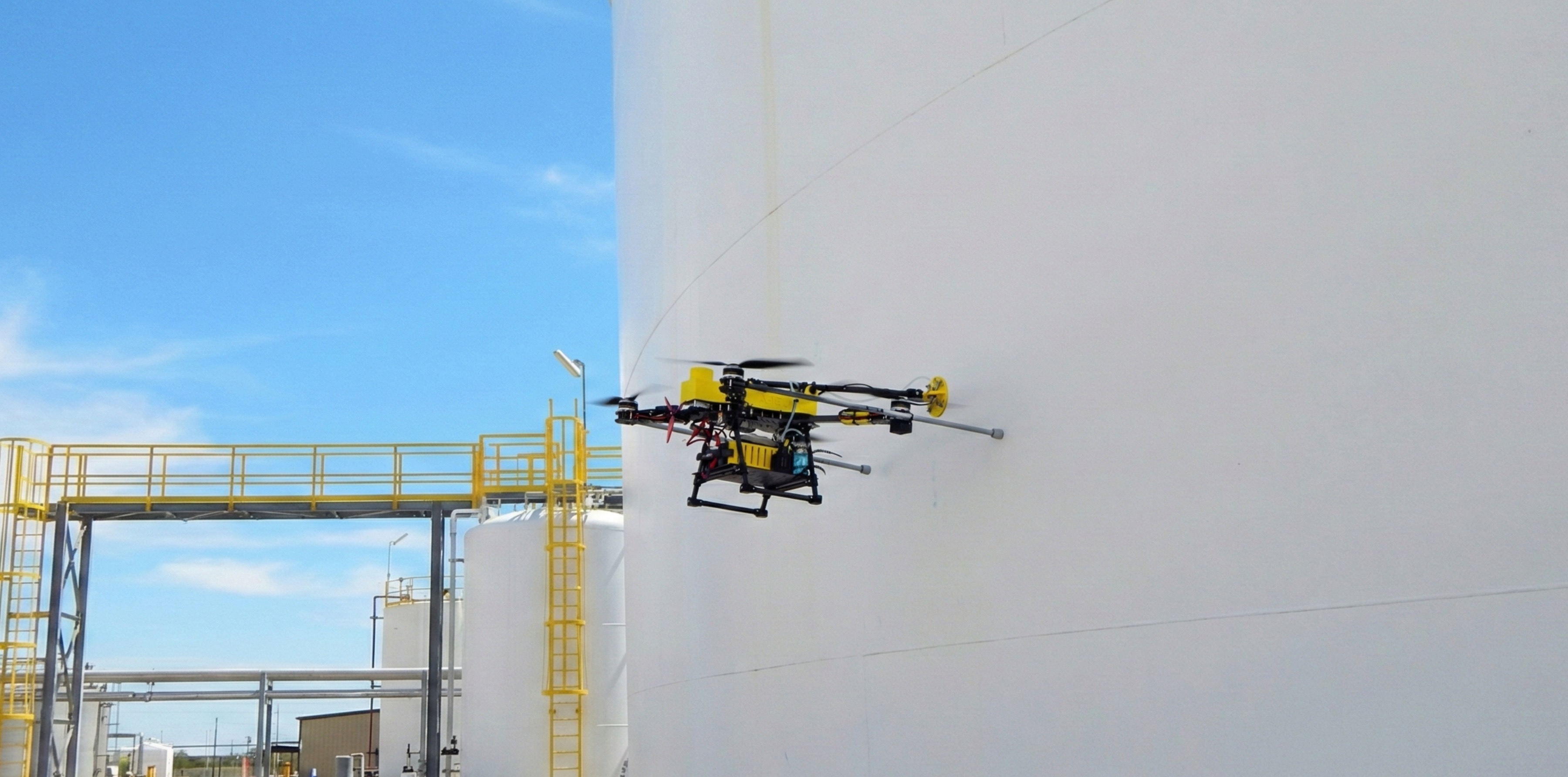

Apellix NDT Drone
Autonomous dry film thickness (DFT) and ultrasonic thickness (UT) measurements at height. Safe, reliable, and cost-effective inspections without human intervention.
Complete NDT inspection system including drone, controller, batteries, measurement probes, Apellix Academy training, and more. Contact us for a custom quote.
Our system includes a certified multi‑gas detector rated for UL Class 1 Div 2 and ATEX Zone 2. It delivers 8‑channel sensing for toxic and combustible gases as well as VOCs, providing live readings and instant alarms directly to the operator.
Two Measurement Systems
DFT (Dry Film Thickness)
Measures coating thickness on ferrous and nonferrous substrates using the DeFelsko Positector 6000 gauge.
-
100+ readings per hour -
Up to 300 ft altitude -
SSPC-PA 2 compliant
UT (Ultrasonic Thickness)
Measures material wall thickness with automatic couplant application using DeFelsko UTG M gauge.
-
100+ site measures per hour -
Up to 330 ft altitude -
Proprietary 3D structure map
Key Features
Autonomous Operation
Pilot initiates sequence; onboard computer handles all flight control and measurements.
Articulating Robotic Arm
Equipped with interchangeable end effectors for different measurement types.
Real-Time Data
Live display with data exported as .csv for direct ERP integration.
Worker Safety
Eliminates need for scaffolding, lifts, and personnel at dangerous heights.
Hazardous Locations
Equipped with 8-gas metering for hazardous location operations.
All-Day Operation
Optional ground power system for continuous operation without battery changes.
Technical Specifications
| Measurement Rate | 100+ readings/hour |
| Max Altitude | 100 m (300 ft) |
| Wind Tolerance | Up to 12 knots (13 mph) |
| Equipment | DeFelsko Positector 6000 |
| Standards | SSPC-PA 2, ASTM D 7091 |
| Measurement Rate | 100+ sites/hour |
| Max Altitude | 100 m (330 ft) |
| Wind Tolerance | Up to 12 knots (14 mph) |
| Equipment | DeFelsko UTG M, 5 MHz |
| Output | 3D structure map |
Need NDAA Compliance?
Our Blue variant meets federal and state government requirements.
Complete NDT Inspection Package
- NDT Drone Platform
Complete autonomous aircraft with contact-based inspection system
- DeFelsko Measurement Equipment
Industry-standard PosiTector gauges for coating thickness measurement
- Controller & Ground Station
Complete pilot control system with real-time data display
- Data Export Software
Professional reporting tools with GPS-tagged measurements
- Apellix Academy Training & Certification
Complete operator training and certification program
- 1 Year Warranty
Standard warranty with dedicated support team
Get a Custom Quote
The NDT Drone is a specialized inspection system. Contact our sales team to discuss your specific requirements and receive a tailored quote.
Contact UsReady to Automate Your Inspections?
Contact our sales team to discuss how the Apellix NDT Drone can transform your inspection operations.
